YOUNG STAR MOTOR CO.، LTD.
فراهم می کند محصولات با کیفیت و خدمات، اجازه دهید مشتری راضی است
 |
| محل منبع: | ژجیانگ، چین |
| نام تجاری: | TOYOTA |
| شماره مدل: | 1FZ ؛ 1HZ |
| مقدار حداقل تعداد سفارش: | 100PC |
|---|---|
| قیمت: | negotiable |
| جزئیات بسته بندی: | بسته خنثی |
| زمان تحویل: | 5-15 روز |
| شرایط پرداخت: | 100% پرداخت قبل از تحویل |
| قابلیت ارائه: | 10000PCS / ماه |
| OEM: | 13711-66020 13711-66030 (IN) ؛ 13715-66030 13715-66020 (EX) | اندازه: | 38.0×7.0×98.7 ؛ 32.0×7.0×98.2 |
|---|---|---|---|
| درخواست دادن: | تویوتا | کیفیت: | 60000 کیلومتر |
| تحویل: | 5 روز | ||
| برجسته کردن: | ,,automotive engine valves |
||

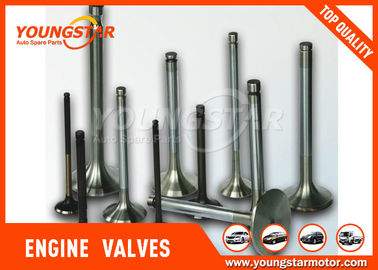

TOYOTA 1FZ Car Engine Valves 13711-66020 13711-66030 ( IN ) 13715-66030 13715-66020 ( EX )
| O.E. NUMBER | IN/EX | DIMENSION | CRA MODEL / ENGING MODEL | |||
| D×d×L(mm) | ||||||
| 13711-75020 | IN | 42.0×8.0×102.0 | Eng. 1RZ; 2RZ | |||
| 13711-75030 | 46.0×8.0×101.8 | |||||
| 13711-75040 | ||||||
| 13715-75010 | EX | 35.×8.0×102.2 | ||||
| 13715-75020 | ||||||
| 13715-75030 | 38.×8.0×102.3 | |||||
| 13711-75070 | IN | 37.5×6×104.1 | Eng. 3RZF | |||
| 13715-76030 | EX | 30.5×6×103.9 | ||||
| 13715-75070 | ||||||
| 13711-54020 | IN | 42.5×8.0×103.5 | Eng. 2L; 3L;2L2 79369 79370 | |||
| 13711-17010 | ||||||
| 13715-17010 | EX | 36.1×8.0×103.3 | ||||
| 13715-54040 | ||||||
| 13711-54010 | IN | 42.6×8.5×123.0 | Eng. L; 2L; 5L 79083 79084 | |||
| 13711-54030 | ||||||
| 13715-54020 | EX | 35.0×8.5×122.8 | ||||
| 13715-54030 | ||||||
| 13715-54010 | ||||||
| 13711-15050 | IN | 30.0×6.0×91.5 | Eng. 4AF; 5A; 5AF 79331 | |||
| 13711-15060 | ||||||
| 13711-15071 | ||||||
| 13711-15081 | ||||||
| 94847343 | ||||||
| 13715-15050 | EX | 24.6×6.0×92.0 | ||||
| 13715-15040 | ||||||
| 13715-15050 | ||||||
| 13715-15060 | ||||||
| 13715-15071 | ||||||
| 94847344 | ||||||
| 13711-10020 | IN | 30.3×6.0×92.3 | Eng. 1E; 2E; 3E 79120 79121 79195 | |||
| 13712-10010 | IN | 21.1×6.0×98.7 | ||||
| 13715-10030 | EX | 31.1×6.0×92.4 | ||||
| 13711-71010 | IN | 40.0×8.0×108.3 | Eng. 1Y; 2Y; 3Y; 4Y | |||
| 13711-76012-71 | ||||||
| 13711-71020 | ||||||
| 13715-71020 | EX | 36.0×8.0×108.6 | ||||
| 13715-76014-71 | ||||||
| 13715-71010 | ||||||
| 13711-24011 | IN | 36.0×8.0×100.0 | Eng. 3K; 4K; 5K; 7K 79063 79064 | |||
| 13711-24012 | ||||||
| 13715-24012 | EX | 29.0×8.0×100.0 | ||||
| 13711-15010 | IN | 36.0×7.0×106.7 | Eng. 1A;2A;3A; 4A | |||
| 13711-15030 | 36.0×7.0×107 | |||||
| 13715-15030 | EX | 31.0×7.0×106.7 | ||||
| 13715-15010 | ||||||
| 13711-35010 | IN | 45.0×8.0×114.1 | Eng. 21R; 22R | |||
| 13711-35020 | ||||||
| 13711-35030 | ||||||
| 13711-35031 | ||||||
| 13715-35020 | EX | 37.0×8.0×112.7 | ||||
| 13715-35020 | ||||||
| 13715-35030 | ||||||
| 13715-35031 | ||||||
| 13711-16010 | IN | 30.5×6.0×99.6 | Eng. 4A 79193 79194 | |||
| 13711-16020 | ||||||
| 13715-16010 | EX | 25.4×6.0×99.8 | ||||
| 13711-62040 | IN | 34.1×6.0×95.6 | Eng. 3VZFE; 5VZ | |||
| 13711-62030 | ||||||
| 13715-62040 | EX | 27.3×6.0×95.0 | ||||
| 13715-62030 | ||||||
| 13711-66020 | IN | 38.0×7.0×98.7 | Eng. 1FZ | |||
| 13711-66030 | ||||||
| 13715-66030 | EX | 32.0×7.0×98.2 | ||||
| 13715-66020 | ||||||
| 13711-76020 | IN | 37.5×6.0×104.0 | Eng. 2TZ | |||
| 13715-76020 | EX | 30.6×6.0×104.0 | ||||
| 13715-76030 | ||||||
| 13711-45020 | IN | 38.0×8.0×116.2 | Eng. 4M; 5M; 4MC | |||
| 13711-45010 | ||||||
| 13711-41020 | ||||||
| 13715-45020 | EX | 33.0×8.0×113.3 | ||||
| 13711-61020 | IN | 46.0×8.0×125.0 | Eng. 2F; 3F;4F | |||
| 13715-61030 | EX | 37.5×8.0×125.3 | ||||
| 13711-64011 | IN | 38.5×8.0×105.0 | Eng. 1C; 2C ;3C | |||
| 13711-64020 | ||||||
| 13715-64030 | EX | 32.5×8.0×105.0 | ||||
| 13711-64020 | ||||||
| 13715-64040 | ||||||
| 13715-64012 | ||||||
| 13711-68010 | IN | 42.0×9.0×120.9 | Eng. H; 2H | |||
| 13715-68010 | EX | 32.0×9.0×120.8 | ||||
| 13711-58020 | IN | 46.0×9.0×127.0 | Eng. 13B;14B | |||
| 13711-58021 | ||||||
| 13711-58050 | ||||||
| 13715-58040 | EX | 38.5×9.0×126.5 | ||||
| 13711-28020 | IN | 34.0×5.5×101.8 | Eng. 1AZ-FE; 2AZ-FE | |||
| 13711-28010 | ||||||
| 13715-28010 | EX | 29.5×5.5×101.2 | ||||
| 13711-28020 | ||||||
| 13711-60021 | IN | 46×8.0×124.8 | Eng. 2F 3F | |||
| 13711-60010 | ||||||
| 13711-60020 | ||||||
| 13715-61010 | EX | 37.5×8.0×125.2 | ||||
| 13715-60032 | ||||||
| 13715-61030 | ||||||
| 13711-44013 | IN | 43×8.5×109.5 | Eng. 5R | |||
| 13715-44022 | EX | 37.0×8.5×110.2 | ||||
| 13711-31030 | IN | 40×8×109.0 | Eng. 12R 35207 35208 | |||
| 13711-31050 | ||||||
| 13711-31040 | ||||||
| 13715-31030 | EX | 34.0×8×109.0 | ||||
| 13715-31040 | ||||||
| 13715-31050 | ||||||
| 13711-31050 | IN | 40×8×109.0 | Eng. 12R; RJ; RU | |||
| 13715-31070 | EX | 34.0×8×109.0 | ||||
| 13711-35040 | IN | 37.0×8.0×112.7 | Eng. 21R; 22R | |||
| 13711-35050 | ||||||
| 13711-35051 | ||||||
| 13711-15090 | IN | 31×6.0×87.5 | Eng. 4AFE 79401 79402 | |||
| 94853629 | ||||||
| 13715-15070 | EX | 24.5×6.0×88.0 | ||||
| 13711-74080 | IN | 32×6×97.6 | Eng.3S-F; 5S 79292 79293 | |||
| 13711-74090 | ||||||
| 13711-03020 | ||||||
| 13715-74080 | EX | 27×6×98.5 | ||||
| 13715-74090 | ||||||
| 13715-03020 | ||||||
| 13711-16060 | IN | 31×6×87.5 | Eng. 4AFE; 7AFE;8A | |||
| 13715-16060 | EX | 24.5×6×88 | ||||
| 13711-87701 | IN | 36.0×7.0×101.6 | AB CB | |||
| 13711-87702 | ||||||
| 13711-87705 | ||||||
| 13715-87701 | EX | 33.0×7.0×101.6 | ||||
| 13715-87702 | ||||||
| 13711-22030 | IN | 32×5.5×88.7 | Eng. 1ZZ-FE | |||
| 13715-22030 | EX | 27.5×5.5×88.7 | ||||
| 13711-22040 | IN | 31×5.5×88.7 | Eng. 1ZZ-FE;3ZZ-FE;4ZZ-FE COROLLA MR RAV4 | |||
| 13711-OD020 | ||||||
| 13715-22040 | EX | 26×5.5×88.7 | ||||
| IN | 31.5×6.0×105.5 | TOYOTA 2500 | ||||
| EX | 26.5×6.0×106.0 | |||||
| 13711-78200-71 | IN | 38.0×8.0×108.6 | ENG. 1D-Z | |||
| 13715-78200-71 | EX | 32.5×8.0×108.3 | ||||
| 13711-78300-71 | IN | 42.0×9.0×122.0 | ENG. 1Z 11Z | |||
| 13715-78300-71 | EX | 35.0×9.0×121.8 | ||||
